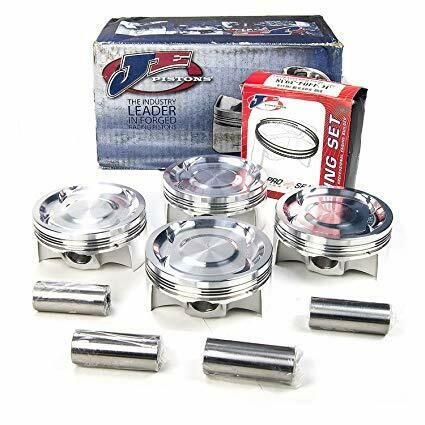

JE Piston Kits SUZUKI Hayabusa (99-24)

Store/Engine/Pistons / Rings/JE Pistons

Product Details

Brand: JE Pistons

RBM Stocks a complete line of JE Piston Kits and can also assist you with any Custom designs for your build
*IF You Need To Order A single Piston Call 803-699-1722 or Email us xrobbushx@gmail.com

PRODUCT DESCRIPTION

Features:

Machined from 2618 T6 high tensile forged aluminum
Dome/Dish features smooth flowing radii and require no deburring or preparation
JE designs are specifically engineered for extreme applications including professional competition
Pins, pin fitment, wire locks and rings included

Suzuki GSX1300R Hayabusa 99-07
Std Bore: 81mm

Piston Kit #	Disp.	Bore Size	Over Size	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Pin #	Lock #
262286	1299cc	81mm	STD	13.5:1	241	Round	JG1001-3189	787-2250-14-93C	787-050-MW
167679	1299cc	81mm	STD	12.3:1	234	Round	XG8100	787-2250-11-93C	787-050-MW
213918*	1299cc	81mm	STD	8.7:1	222	Round	XG8100	787-2250-14-93C	787-050-MW
167680	1363cc	83mm	+2mm	12.5:1	248	Round	XG8300	787-2250-11-93C	787-050-MW
222102*	1363cc	83mm	+2mm	8.7:1	234	Round	JG1001-3268	787-2250-14-93C	787-050-MW
172945	1397cc	84mm	+3mm	12.8:1	244	Round	JG1001-3307	787-2250-11-93C	787-050-MW
262287	1397cc	84mm	+3mm	13.5:1	234	FSR	JG1001-3307	787-2050-14-93C	787-050-MW
222101	1429cc	85mm	+4mm	12.5:1	249	Round	JG1001-3346	787-2250-11-93C	787-050-MW
262288	1429cc	85mm	+4mm	13.5:1	241	FSR	JG1001-3346	787-2050-14-93C	787-050-MW

Suzuki GSX1300R Hayabusa 99-07 Turbo - Tall Deck
Std Bore: 81mm

Piston Kit #	Disp.	Bore Size	Over Size	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Pin #	Lock #
299834*	1299cc	81mm	STD	8.7:1	246	FSR	XG8100	787-2050-18-PTC	787-050-MW
300268*	1363cc	83mm	+2MM	8.7:1	260	FSR	XG8300	787-2050-18-PTC	787-050-MW

Suzuki GSX1300R Hayabusa 08-24
Std Bore: 81mm

Piston Kit #	Disp.	Bore Size	Over Size	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Pin #	Lock #
274089*	1340cc	81mm	STD	9.0:1	238	Round	JG1001-3189	708-2250-18-PTC	708-050-MW
284734	1340cc	81mm	STD	13.0:1	223	Round	JG1001-3189	708-2250-14-93C	708-050-MW
274085	1340cc	81mm	STD	13.5:1	225	Round	JG1001-3189	708-2250-12-52C	708-050-MW
274090*	1407cc	83mm	+2mm	9.0:1	250	Round	JG1001-3268	708-2250-18-PTC	708-050-MW
274086	1407cc	83mm	+2mm	13.5:1	225	FSR	JG1001-3268	708-2050-14-93C	708-050-MW
274087	1441cc	84mm	+3mm	13.5:1	234	FSR	JG1001-3307	708-2050-14-93C	708-050-MW
274088	1441cc	84mm	+3mm	14.5:1	228	FSR	JG1001-3307	708-2050-14-93C	708-050-MW
284735	1476cc	85mm	+4mm	13.5:1	237	FSR	JG1001-3346	708-2050-14-93C	708-050-MW
284736	1476cc	85mm	+4mm	14.5:1	237	FSR	JG1001-3346	708-2050-14-93C	708-050-MW

Suzuki GSX1300R Hayabusa 08-24 Turbo - Tall Deck
Std Bore: 81mm

Piston Kit #	Disp.	Bore Size	Over Size	Comp Ratio	Gram Wt (g)	Skirt Style	Ring #	Pin #	Lock #
300270	1340cc	81mm	STD	9:1	247	FSR	XG8100	708-2050-16-93C	708-050-MW
300269	1340cc	83mm	+2mm	9:1	258	FSR	XG8300	708-2050-16-93C	708-050-MW

*Requires .080" Thick base spacer gasket.

**Quantities are not guaranteed. Products may be on backorder from manufacturer. Special order and custom items are subject to wait times for production.**
