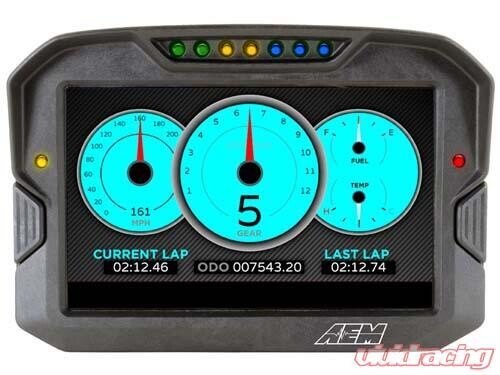

AEM Electronics 30-5700 - AEM Electronics CD-7 Digital Racing Dash Display

AEM has updated its CD-7 Digital Dash Display from an aluminum enclosure to a carbon fiber composite enclosure and in the process has reduced its mass from 740g/26.1 oz. to only 595g/20.9oz. That's almost 1/3rd lbs. less and makes the CD-7 Carbon the lightest graphical dash of its size among major competitors! The new CD-7 Carbon digital displays also have optional integrated 20Hz GPS, which replaces the dash packages that included a Vehicle Dynamics Module. Of course, the Vehicle Dynamics Module still works with any CD Digital Dash Display and can be purchased separately.

Third-party systems will require download of 3rd party DBC CAN bus protocol files for proper operation if they are not included in our setup software. We currently have over 150 validated 3rd party applications, and include a CD-7 Power Cable with every CD Digital Dash Display to simplify the installation of 3rd party devices.

Features

• Full color 7" screen with 800x480 resolution
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Layout files interchangeable with all versions of the CD-5 Carbon
• Wiring interface/harness is identical to the CD-5 Carbon
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• IP65 water resistance - open cockpit, marine and motorcycle safe
• Accepts channels from two separate user programmable CAN bus connections works with AEMnet enabled devices and non-AEM 3rd party devices side by side
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Install the CD-7 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
• Dedicated Alarm page quickly identifies problems, programmable in almost any language!
• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Use included page layouts and input your channels and text, or create your own from scratch
• Free DashDesign Graphics Editor software
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Two programmable LEDs
• Odometer function
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• Headlight-in connection dims the dash and LEDs during night operation
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
• User supplied graphics can be changed based on channel values (up to the full screen size)
• Convert CAN bus channel values to user-defined text in multiple languages
